Dealer Comments

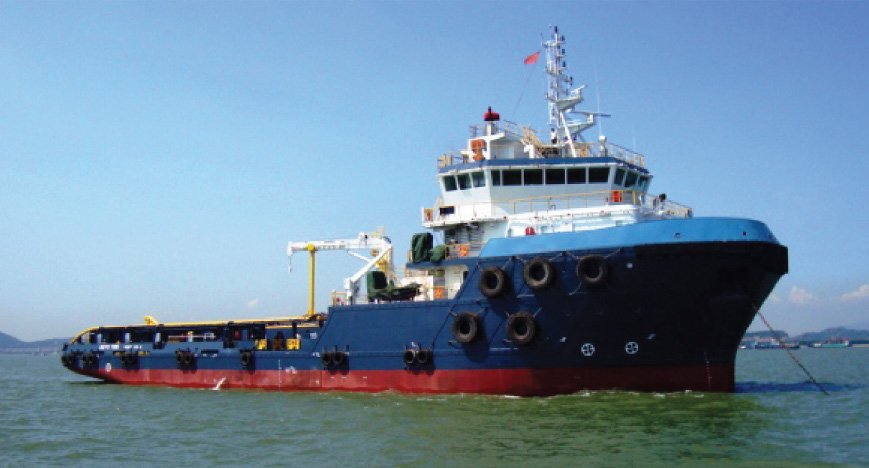

8000 hp DP2 AHTS
(Ref No fb843)
Anchor Handling Towing Supply
LOA: 69.99m
Beam: 16.6m
Draft: 6.3m
Displacement : 4820 mt
DWT: 2570 mt
NT: 781
GT: 2605
Bollard pull : 110 mt
Deck Space : 37m x 13m
Deck Strength (fwd) : 5 tm2 / (aft) : 10 tm2
Class Notations : ABS + A1 (E). OSV. AH. Towing Vessel, FFV-1, +AMS, + DPS-2, UWILD
Built: 2012
Builder: Yuexin Shipbuilding, China
Machinery
2 x GE 16V 228 (Total hp) 8200
Kort Nozzles – 2
Gearboxes – 2 x Twin Disc 6.54:1
Speed : Max – 14 kts; Cruising – 10 kts; Economical – 8 kts
Range – 7930 nm
Gen sets – 2 x Cat18 / 420kw ; 2 x Main Eng / 1200 kw ; Emergency – 1 x Volvo D7A-T / 99 kw
Thrusters - (2 x bow Kawaski KT-55/ 430 kf el.motor & 1 x stern Kawaski KT-55)
Tow/Anchor Handling
Winch – Oil States Waterfall (Model 84, line pull 280 mt, tow/AH wire – 1500m / 1500 m of 64mm)
Permanent reels – 2 x 1500 m of 64mm
Shark Jaw – 200 t SWL
Tow pins – 1 set-200 T SWL
Chain lockers – (2) 1530 m of 76mm chain
Chain handler
Stern Roller – 20FT x 6.5FT: 300 mt SWL
Crane – 5 t@ 12.2m
Capstans – 2 x 5 t Electro-hydraulic
Nav/Comms
Radar (2)
Depth Sounder
Gyro Compass (3)
Wind Speed Indicators (3)
Doppler Log
Radios – 2 x VHF; 1 x SSB
Sat Com – IRDIUM & Sat C
Accommodation – 40 (15 cabins)
Hospital – yes
Special Equipment
Fire Fighting – FiFi – 1
Dynamic Positioning – DP-2
Ref Systems – 2 x MRU ; 2 x DGPS ; 1 x Microwave-based
Water maker – 1 x 12 t/day
Mud Circulation System/mud mixers – yes
Rescue zone
Rescue Boat – 6-man SOLAS Approved
Gas Detection
Reefer Sockets – 2 x 440v; 2 x 240v
Misc – MSD 40 persons/day
Location: Delivery from Guangdong, China
Price: USD $15.7m
