AHTS WORKBOAT
(Ref No 842)
65m x 16m x 5.10m
Built: 2026 (new)
Diesel Electric DP2 AHTS
(Multipurpose Offshore Support Vessel),
Bollard Pull: 92T
Speed: Max – 14 knots
Service – 10 knots
Total Persons: 48P (SPS Code) | 60P (IP Code)
Length Overall (LOA): 65.00 m
Breadth Moulded: 16.00 m
Depth Moulded: 6.80 m
Draft (Summer): 5.10 m + 0.90 m SKEG
Gross Tonnage: 2388
Net Tonnage: 698
Deadweight (Summer): 1558.6T

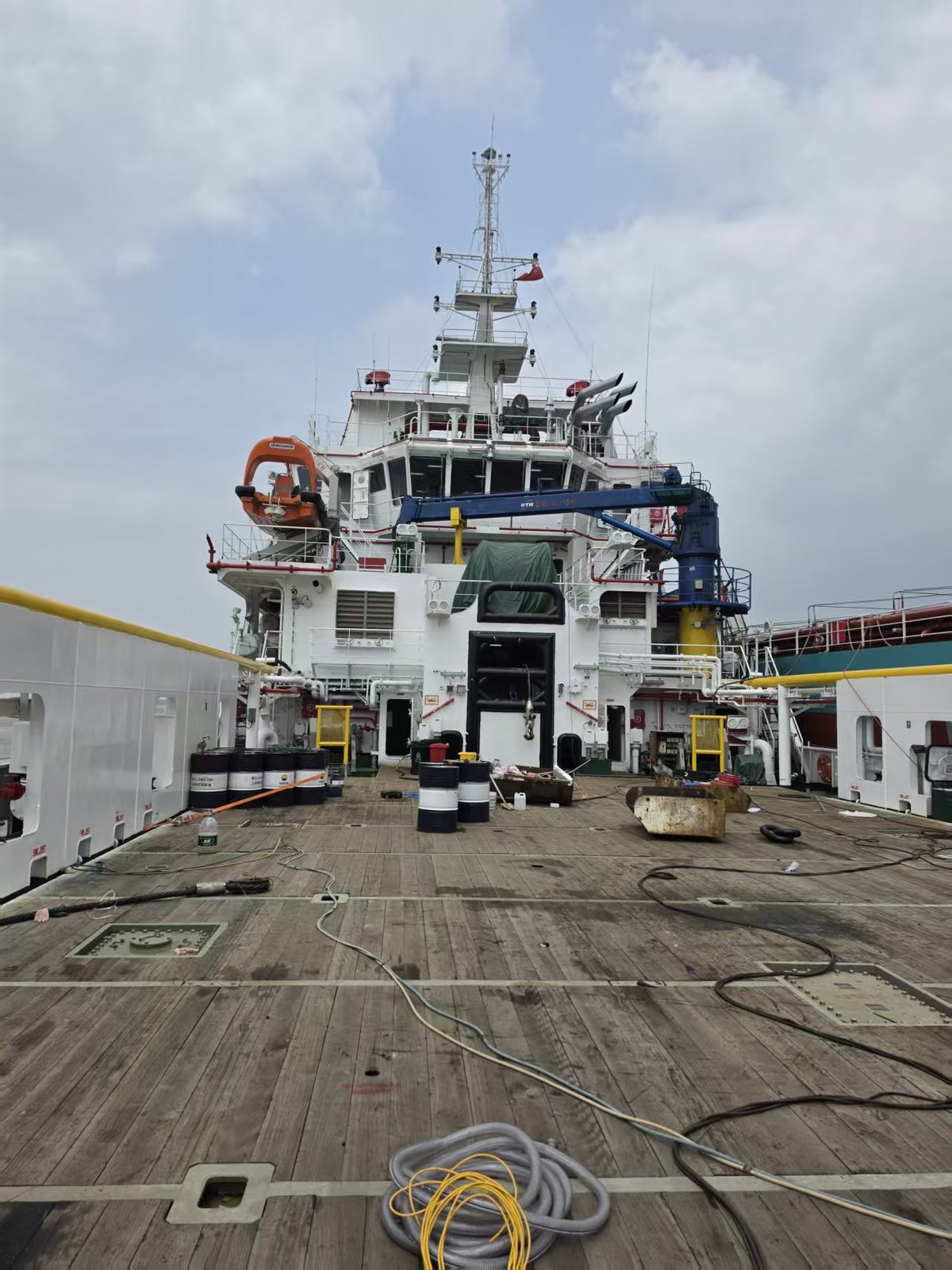

Free Deck Space: 420m²
Deck Cargo Capacity: 600T
Deck Strength: 7.50 T / m²
Nox Grade: Tier II
Class: ABS (American Bureau of Shipping)
Class Notations: ABS +1, Offshore Support Vessel
(AH, TOW, Supply-CHEM, OSR-C2,
FFV-1), SPS, Circle E, +AMS,
+ACCU, +DPS-2, UWILD, MLC-
ACCOM, BWT, SMART
(INF,MHM,SHM,Tier1) IHM
Azimuth Stern Thrusters: NGCMARINE 2 x 2650 kW

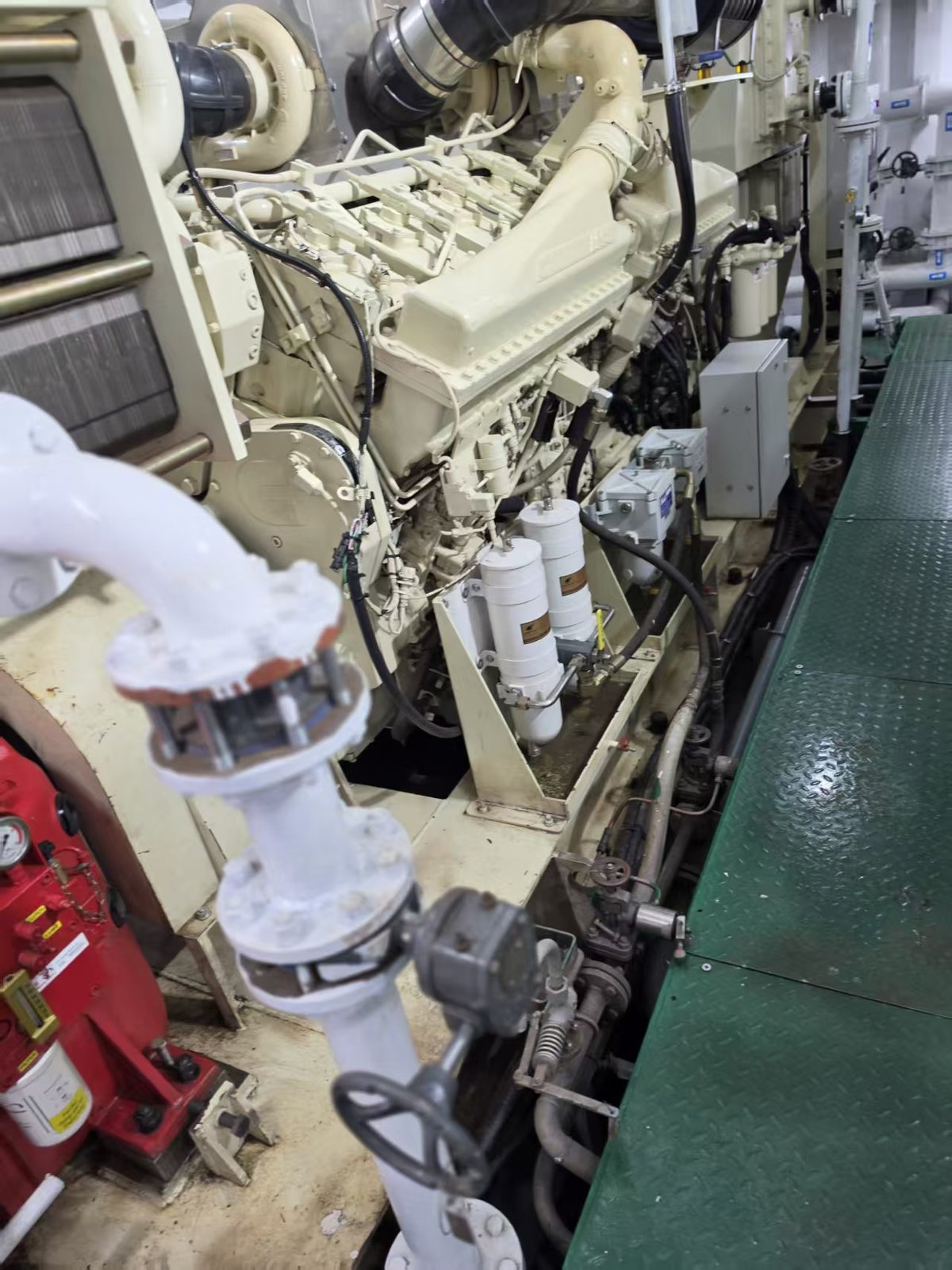

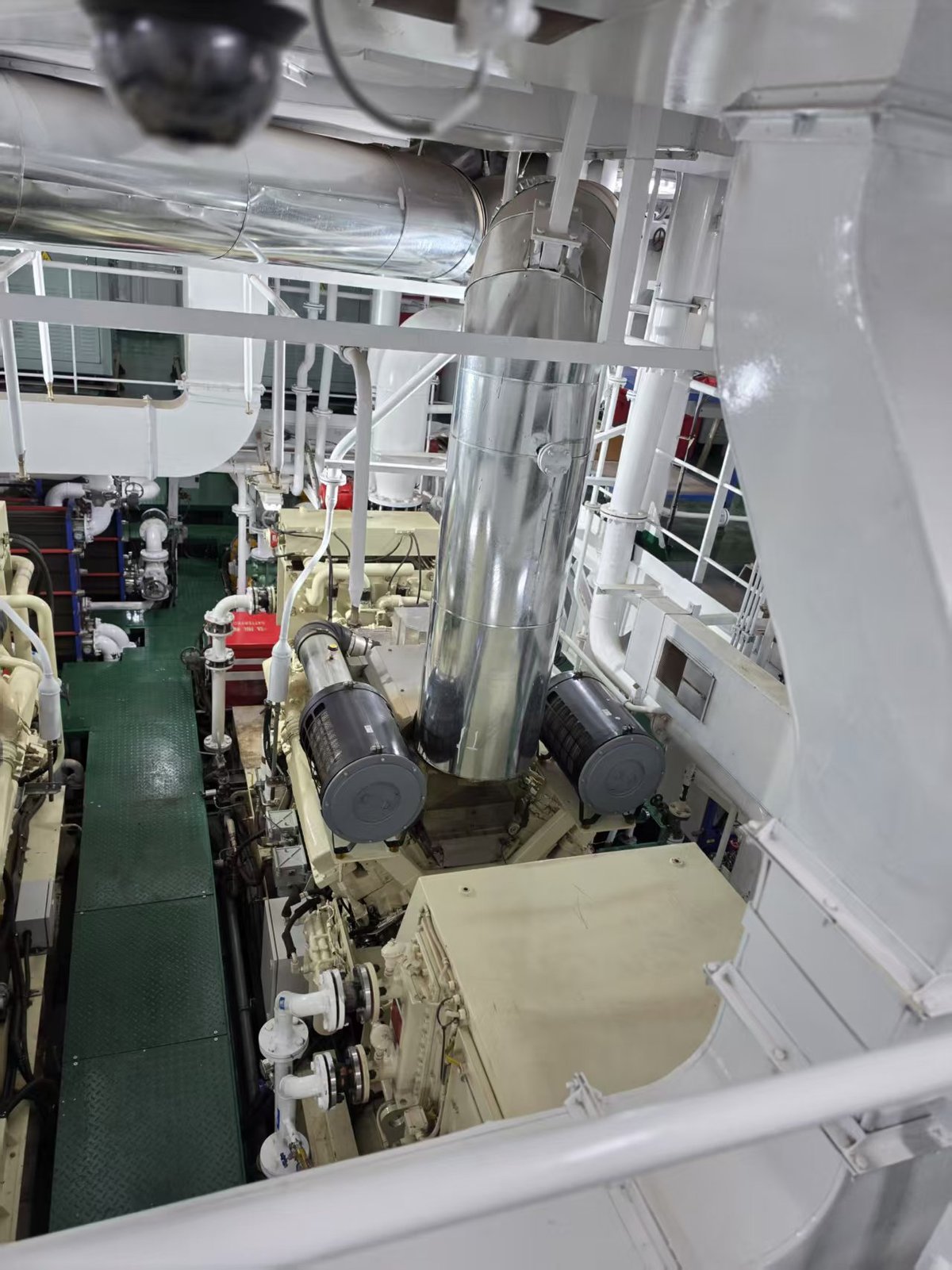

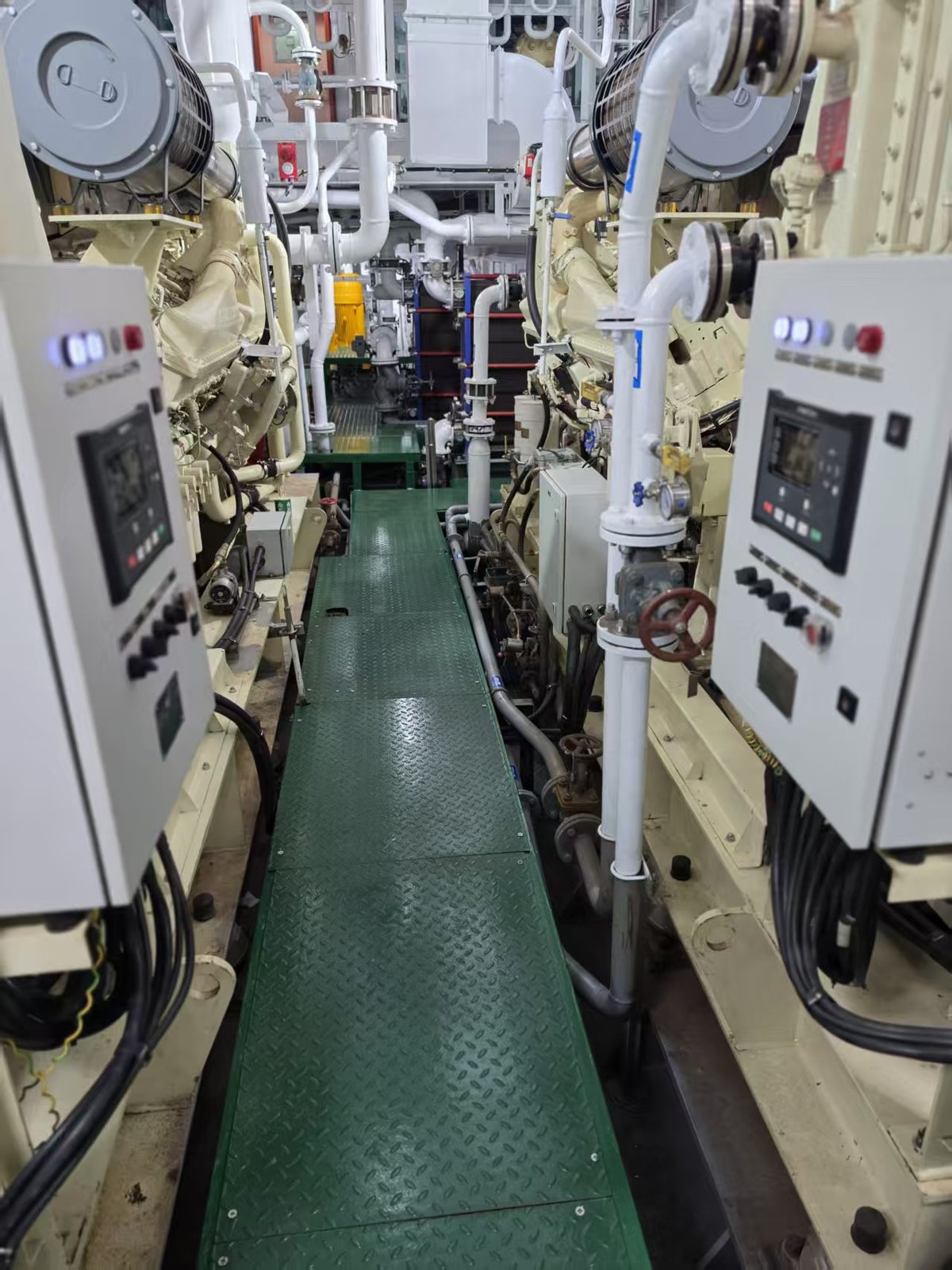

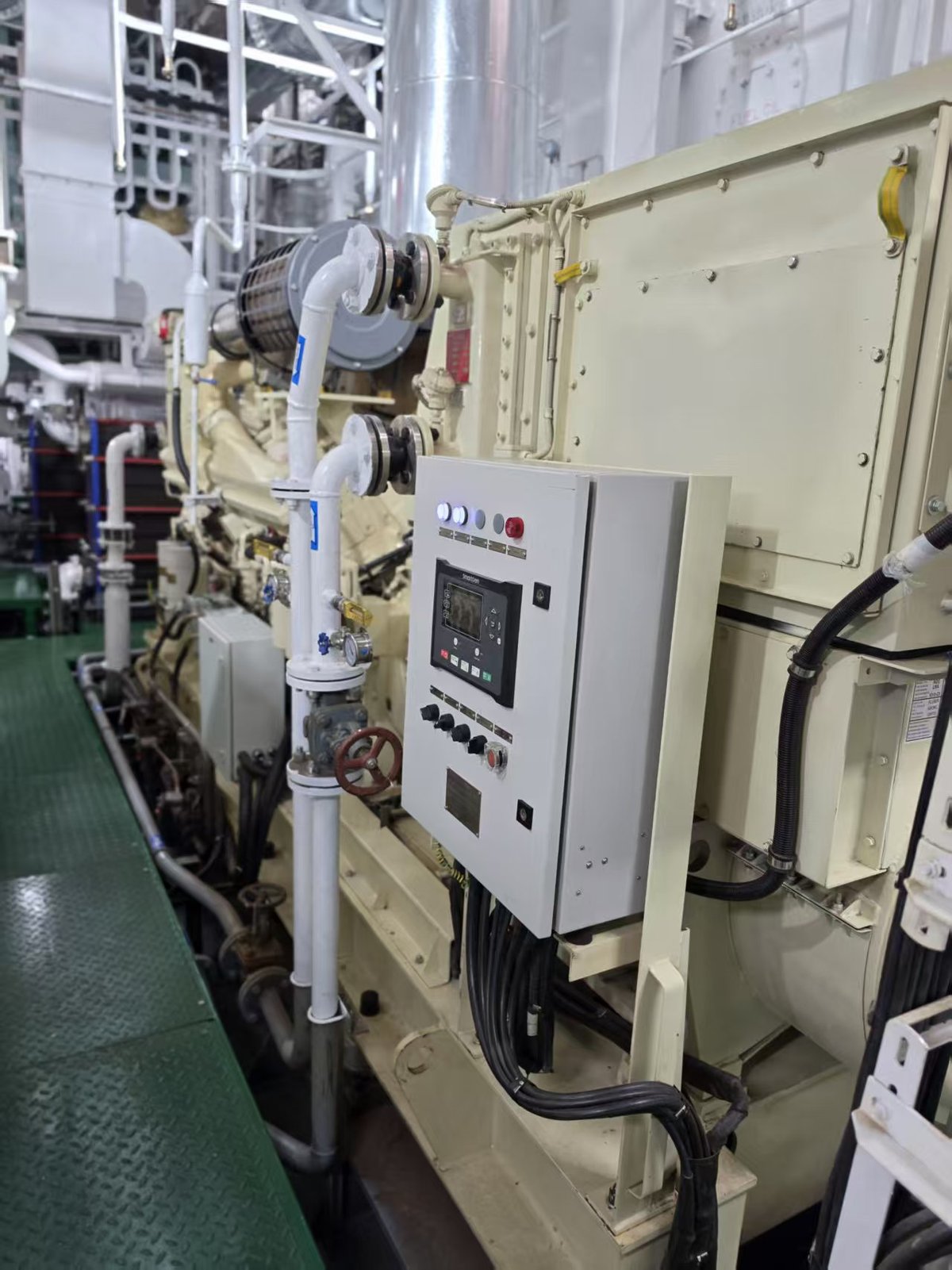

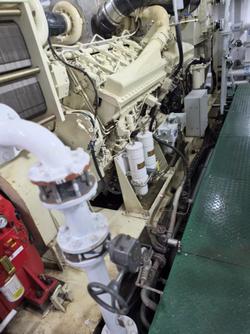

Main Generators: Cummins | 4 x 1600kW(QSK50)
Emergency Generator: Cummins | 1 x 240 kW
Bow Thrusters: NGCMARINE 2 x 10.0 T / 610 kW

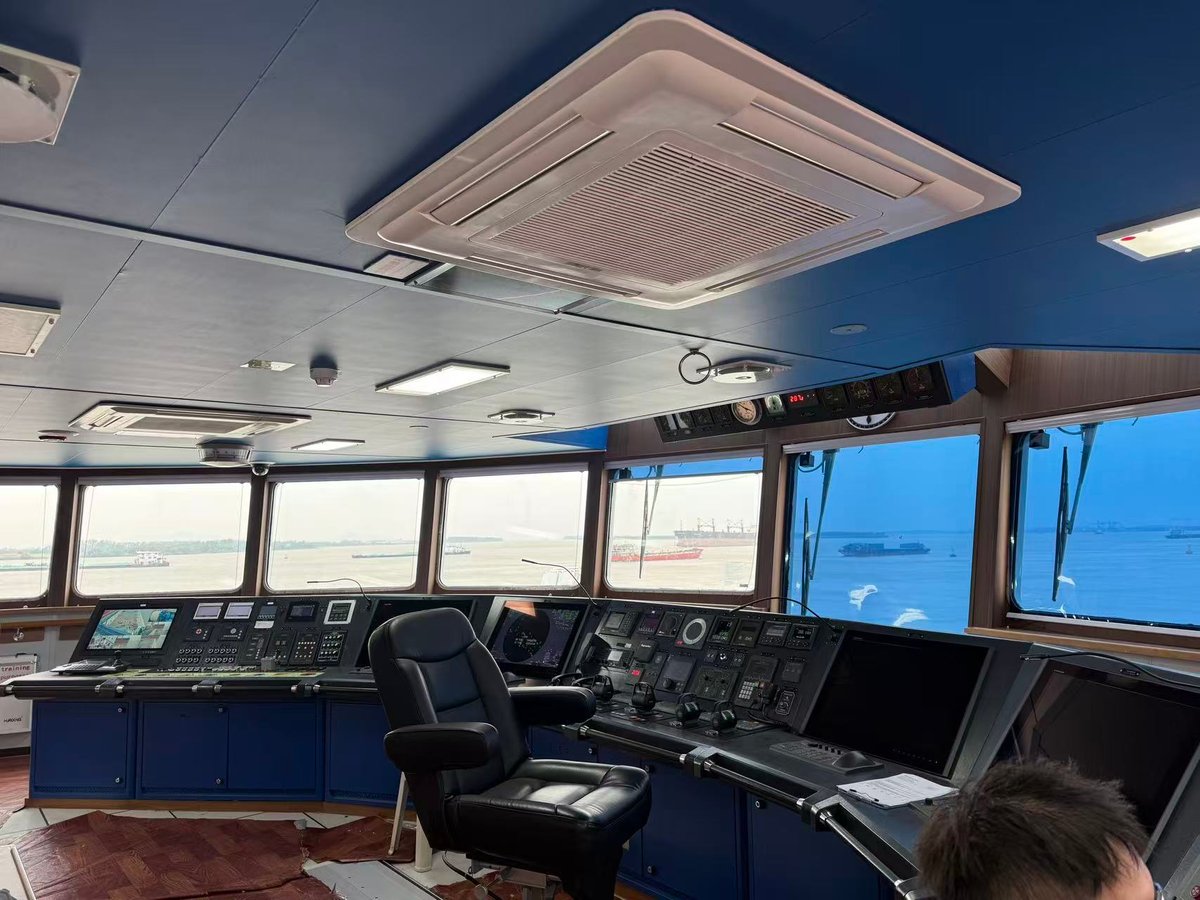

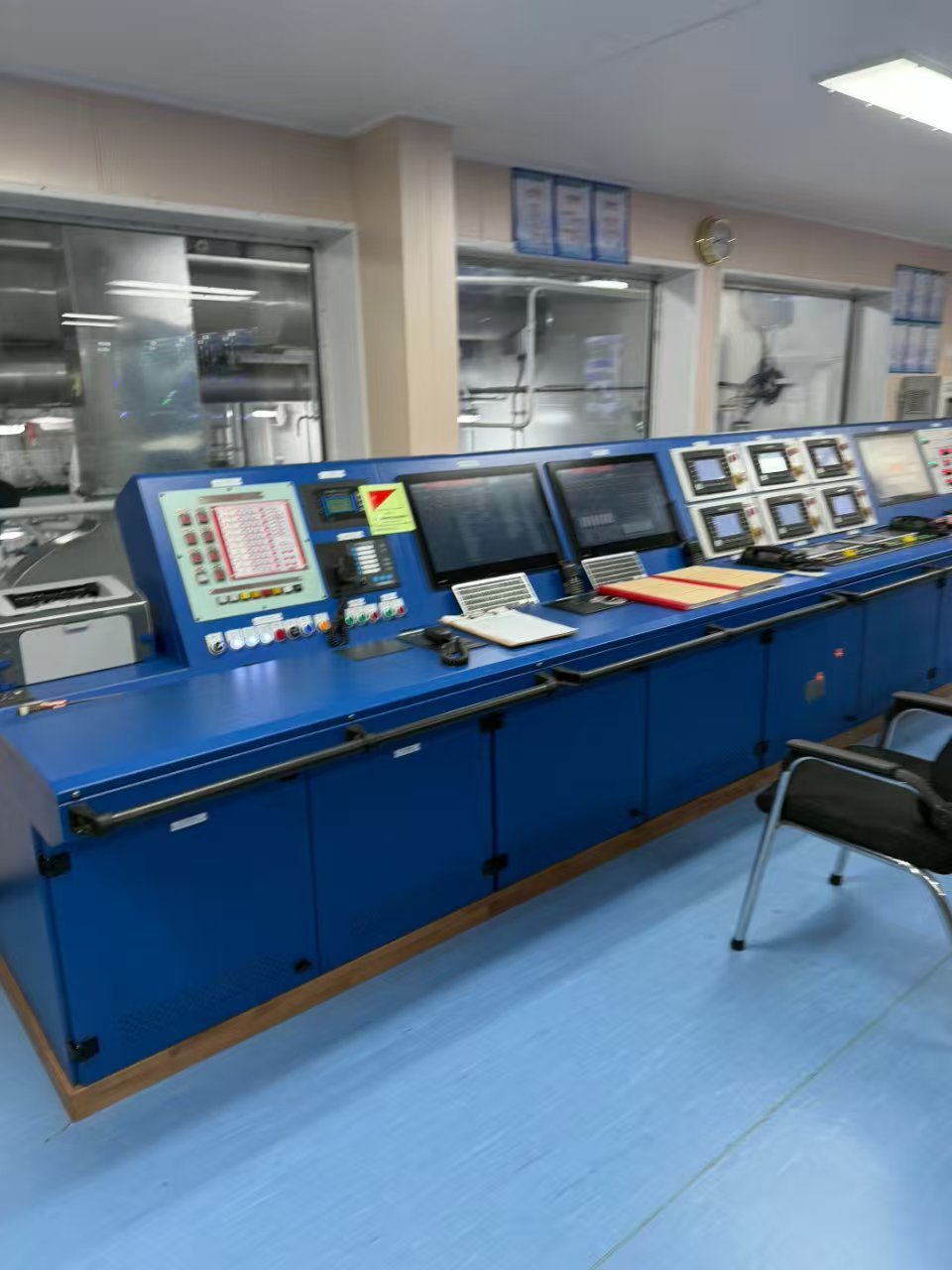

Propulsion Control System:PRAXIS

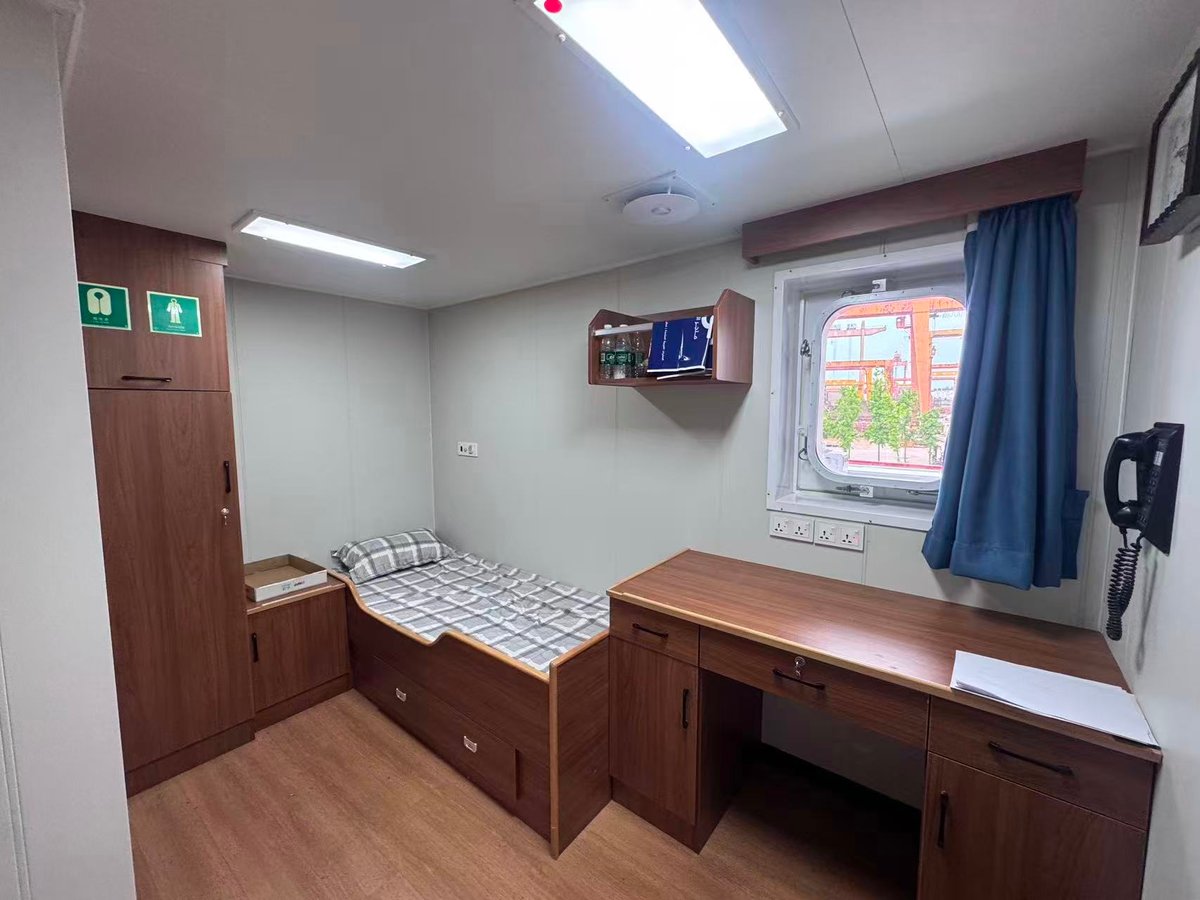

Accommodation: 2 x 1 person apartment | 4 x Singles | 15 x Doubles |
3 x Quadruples | 12 x IP Code | Total POB = 48 (accommodation) + 12 (transfer)
Medical Bay: 1
Anchor Handling & Towing Winch: Hydraulic double drum waterfall type
60mm Dia x 1,200m Wire Rope
- Upper 60mm Dia x 1,200m Wire Rope
- Lower
Winch Brake Holding: 250T (1st layer, static)
Anchor Windlass: Dia 40 mm AM3 | 76 kN @ 13m/ min
Provision Crane: 3T @ 15m Telescopic Crane
DP Class: 2
DP System: PRAXIS DP-2
Independent Joystick: PRAXIS
DP reference systems: 2 x DGPS | DPS i1 1 x Laser |
DP Sensors: 3 x Gyro | 3 x Wind sensors | 3 x MRU
Comments: This AHTS is under construction and ready for delivery in the fourth quarter of this year. Designed with a 92T bollard pull, smart technology Notation.
Suitable for towing, supply, anchor handling and general offshore support duties.
Location: China
Price: USD $24m
