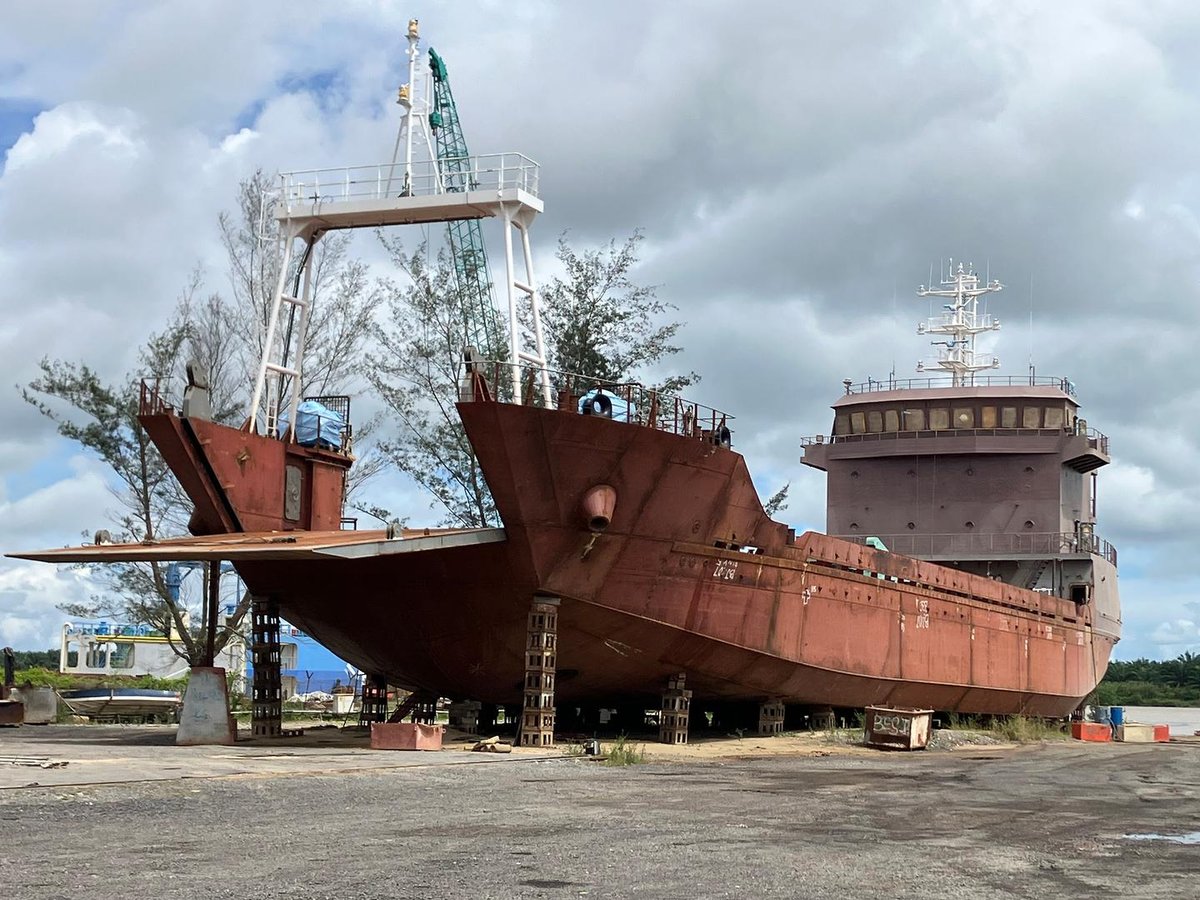

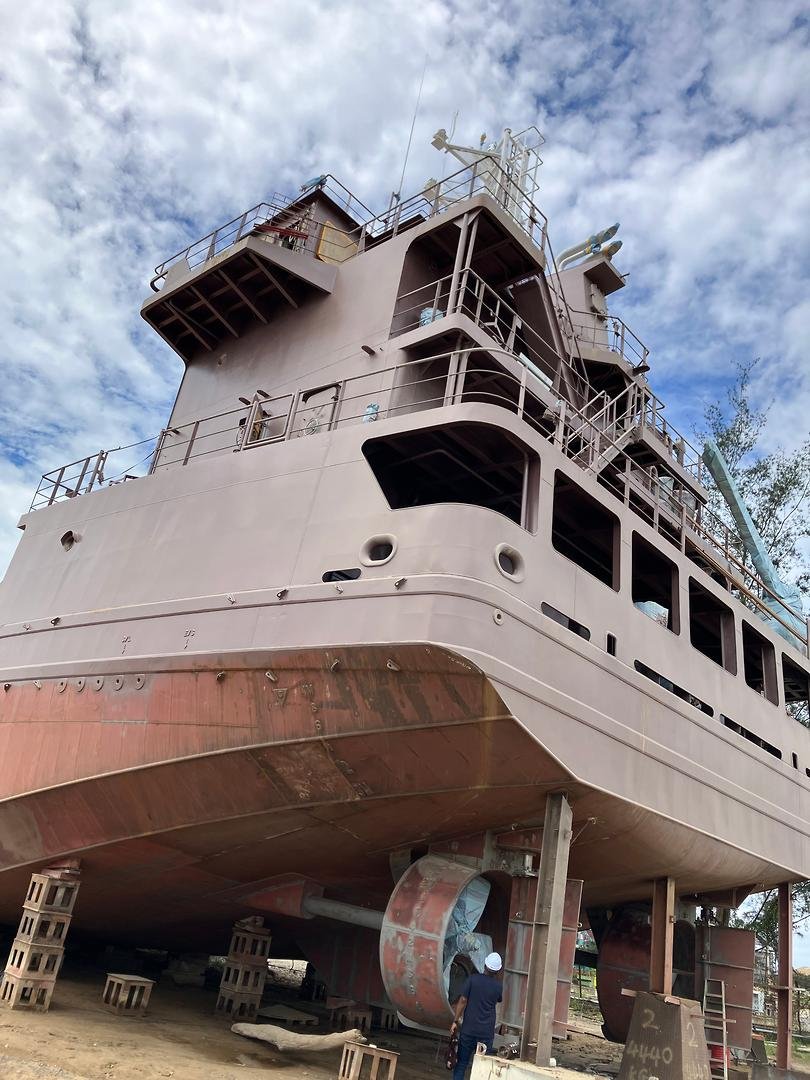

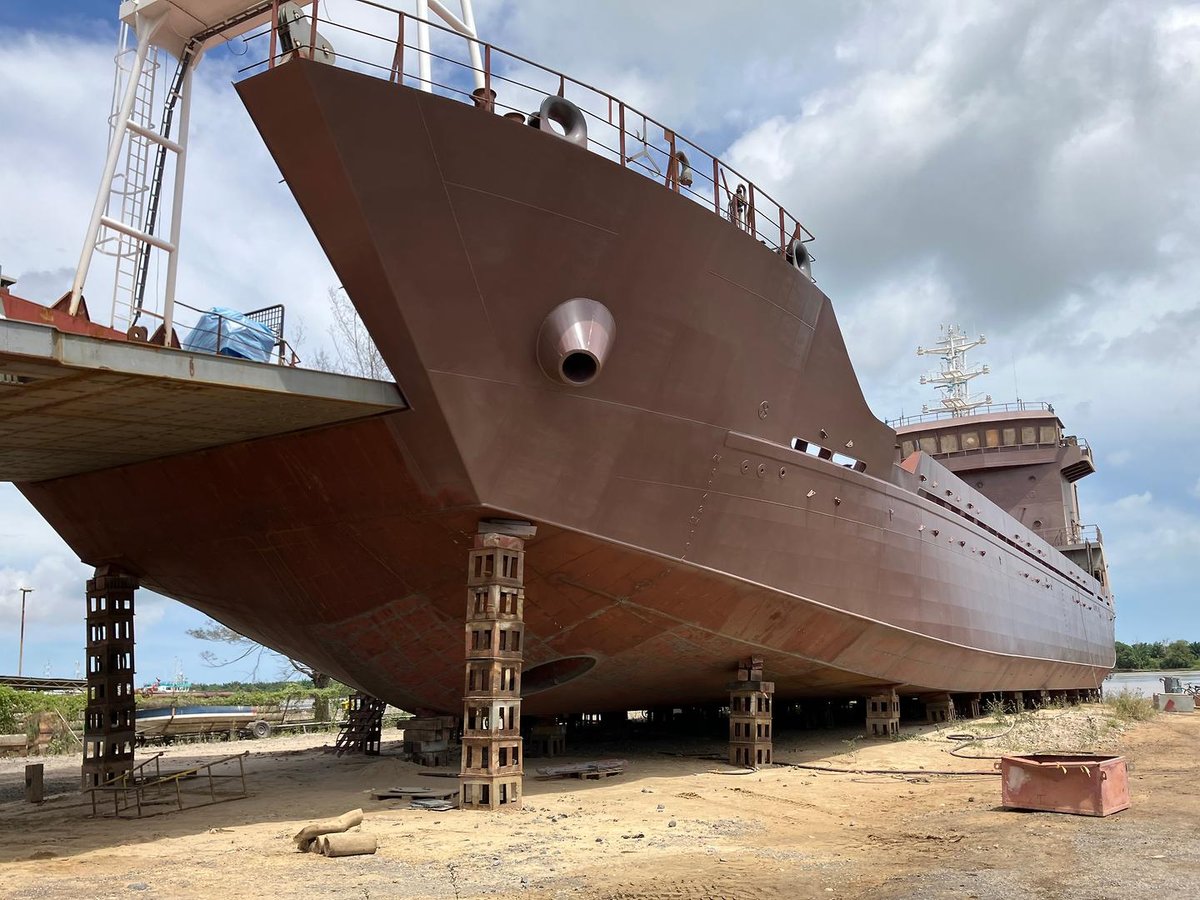

LANDING CRAFT
(Ref No fb805)
Container /Cargo Vessel
68m x 16m x 3.59m (4.5m moulded)
DWT - 1700
Designer – United Ship Design
Builder – Malaysia
Class – BV

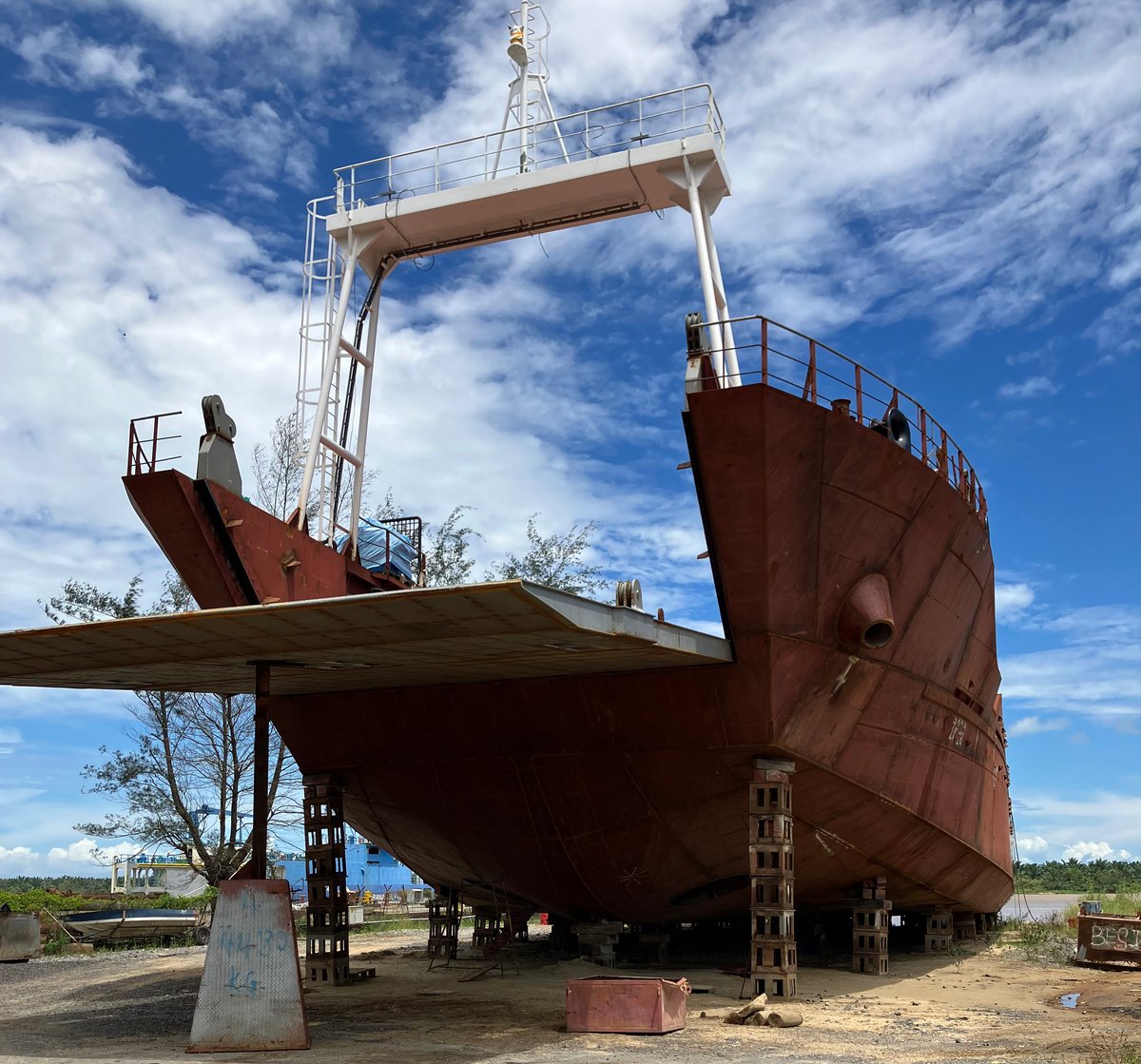

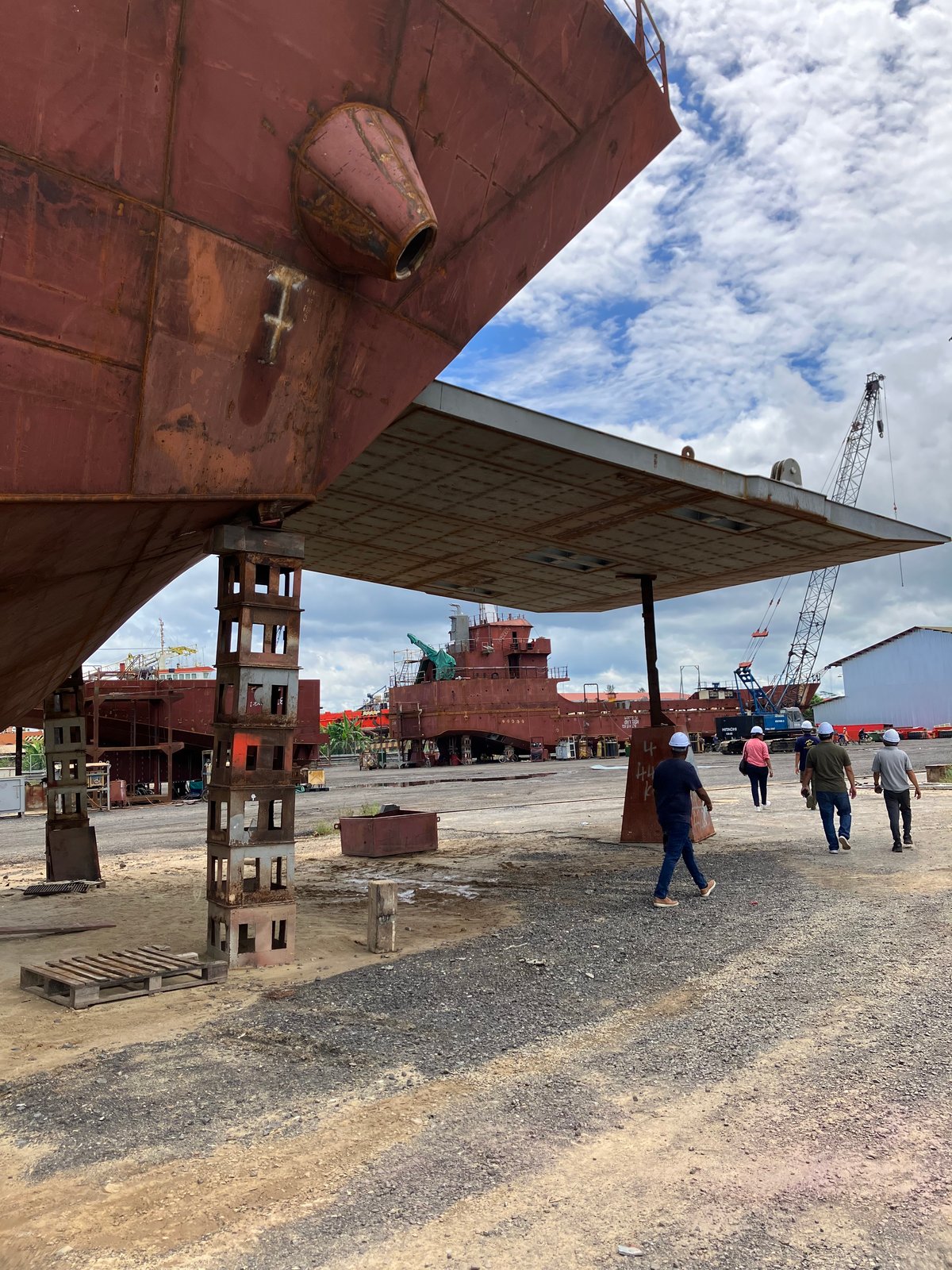

Bow ramp – 8.3m x 9m

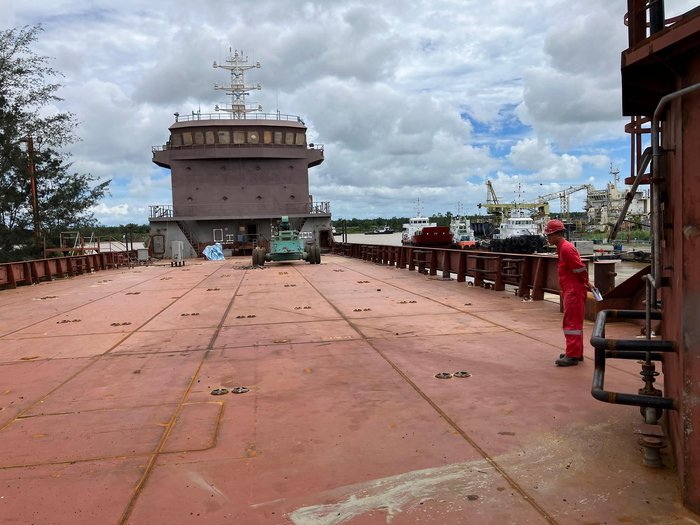

Deck strength – 15t/2
Containers – 112 x TEUs

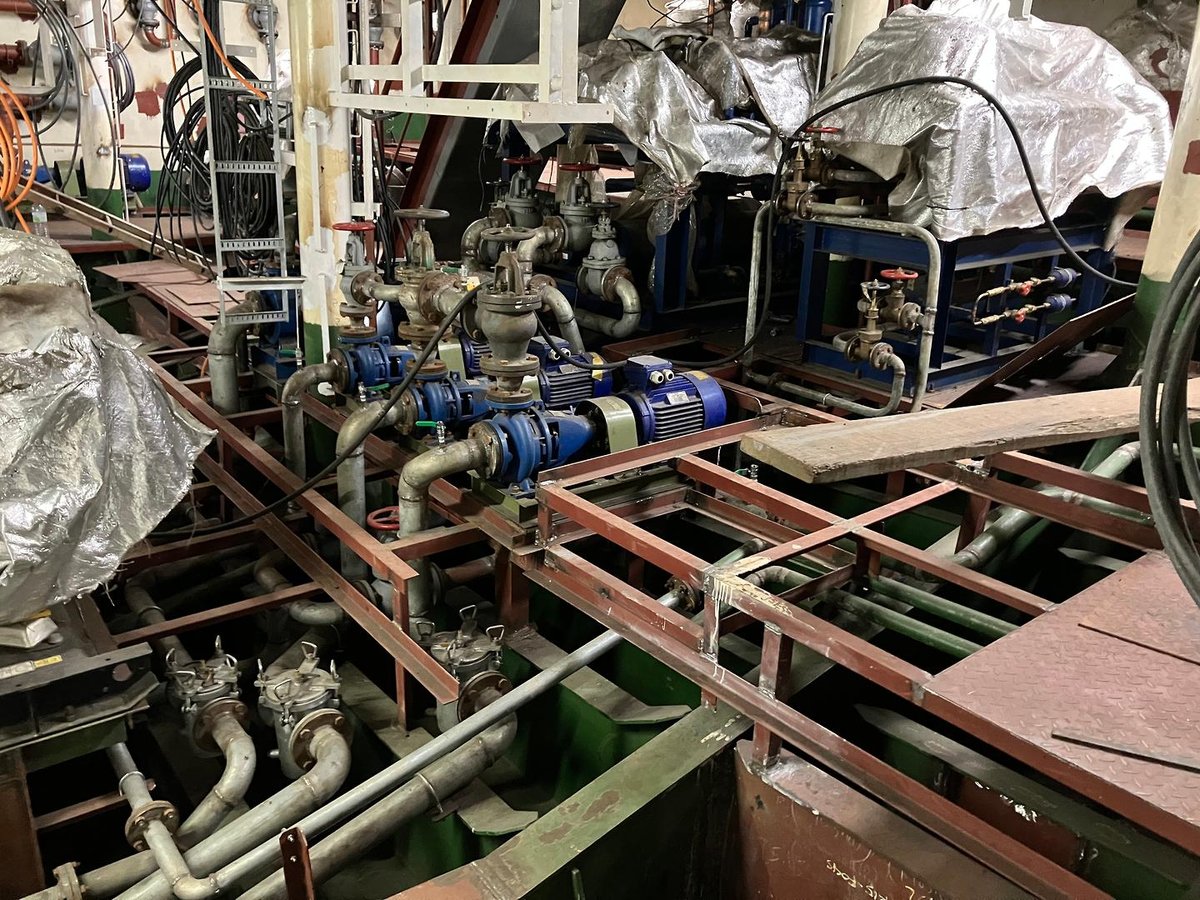

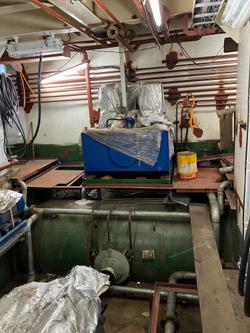

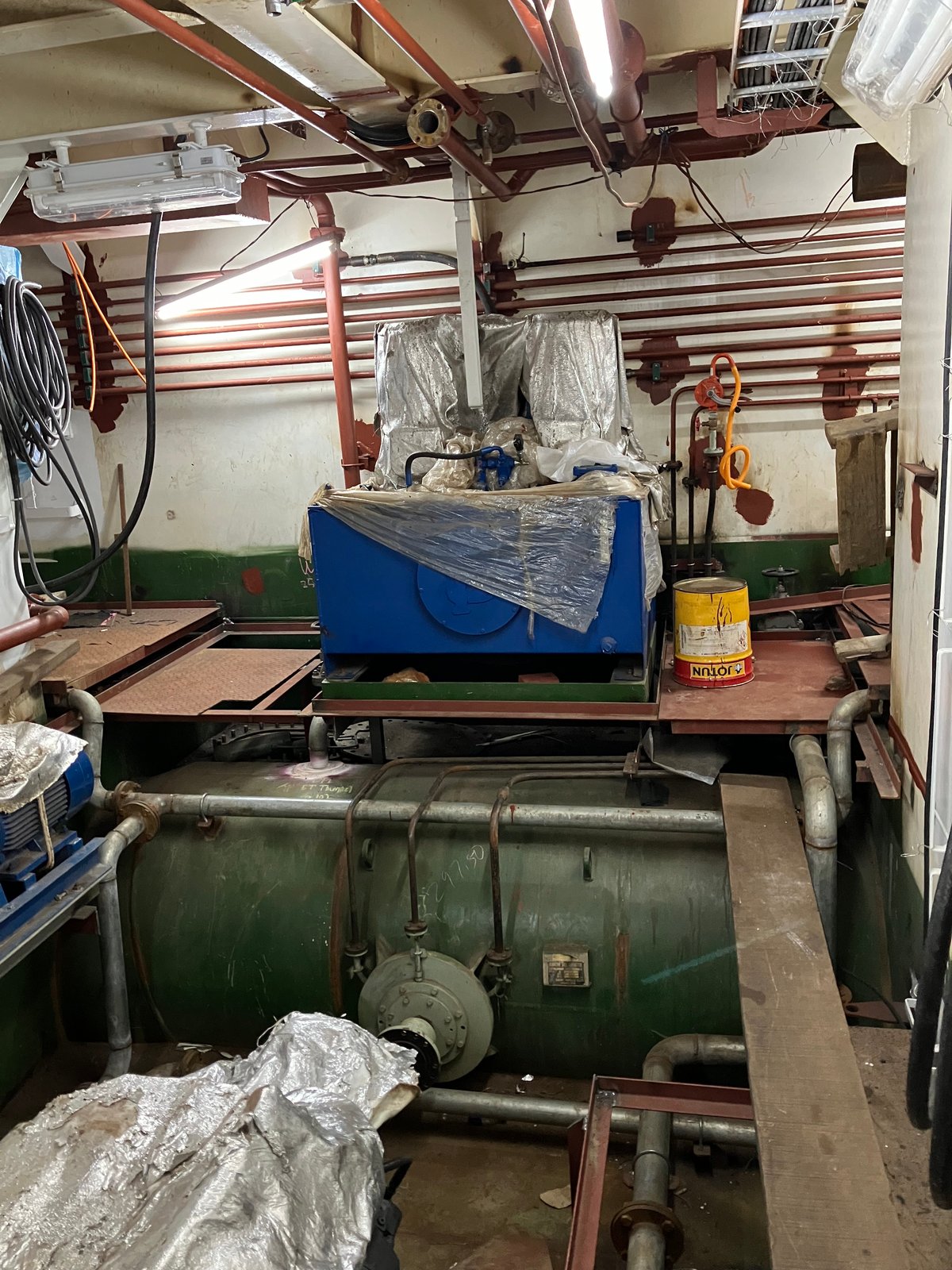

Machinery
Mains motors - 2 x Yanmar 6EY17W
1138ps @ 1450rpm, heat exchanger cooled, electric start
Gearbox – 2 x Reintjes, WAF563, Radio : 5: 1
Speed – 9.5 – 10 knots
Range – 27,000 nm @ 9knots
Rudder – 2 x Mentrade
Steering – electro-hydraulic

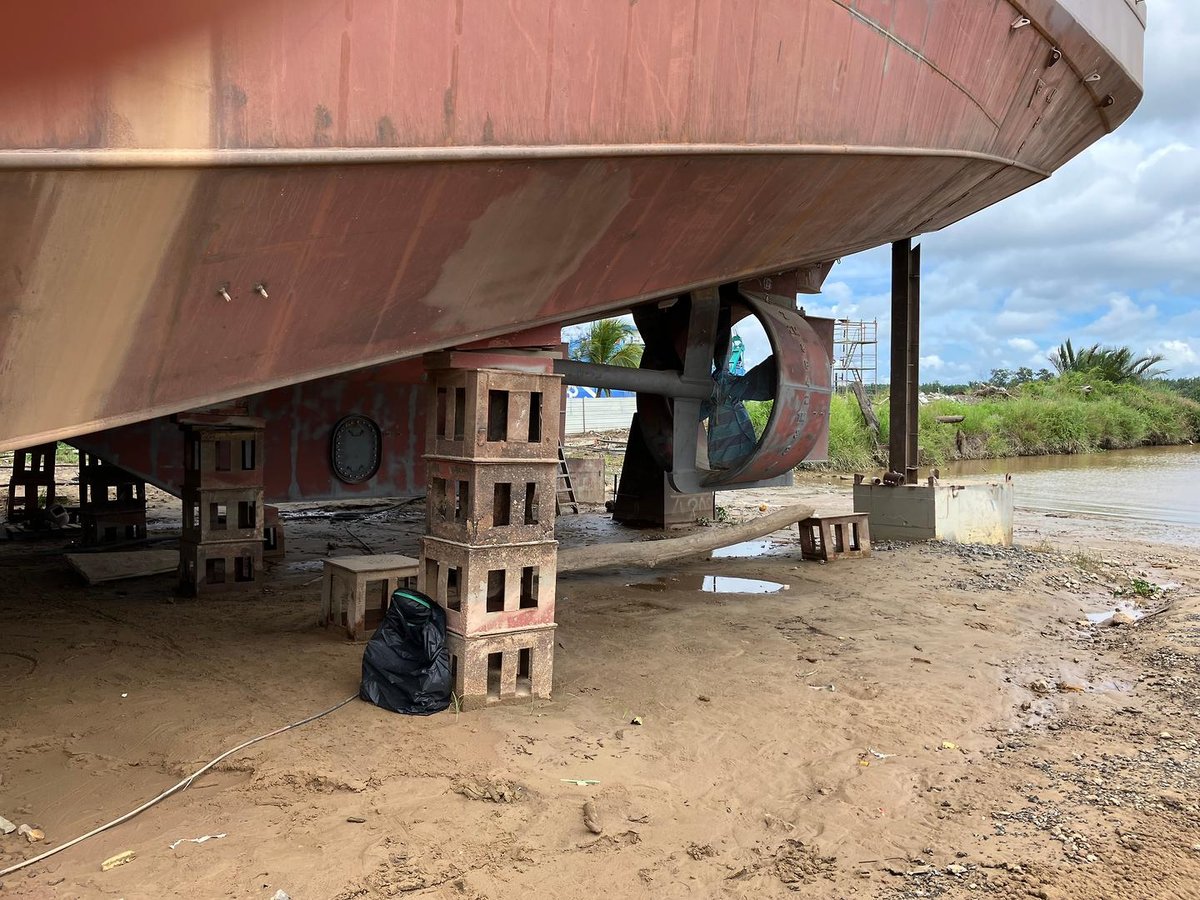

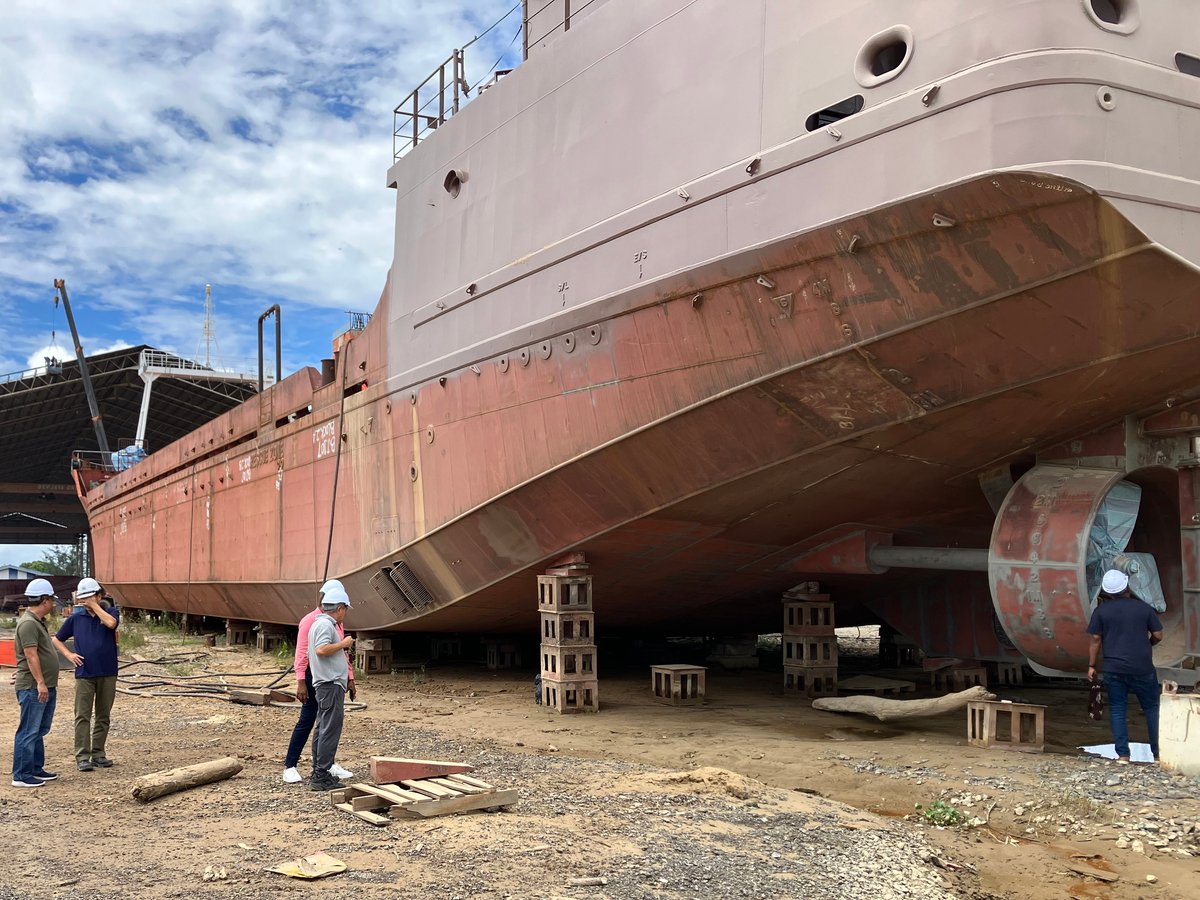

Propellors – 2 x 4-blade maganese bronze in nozzle

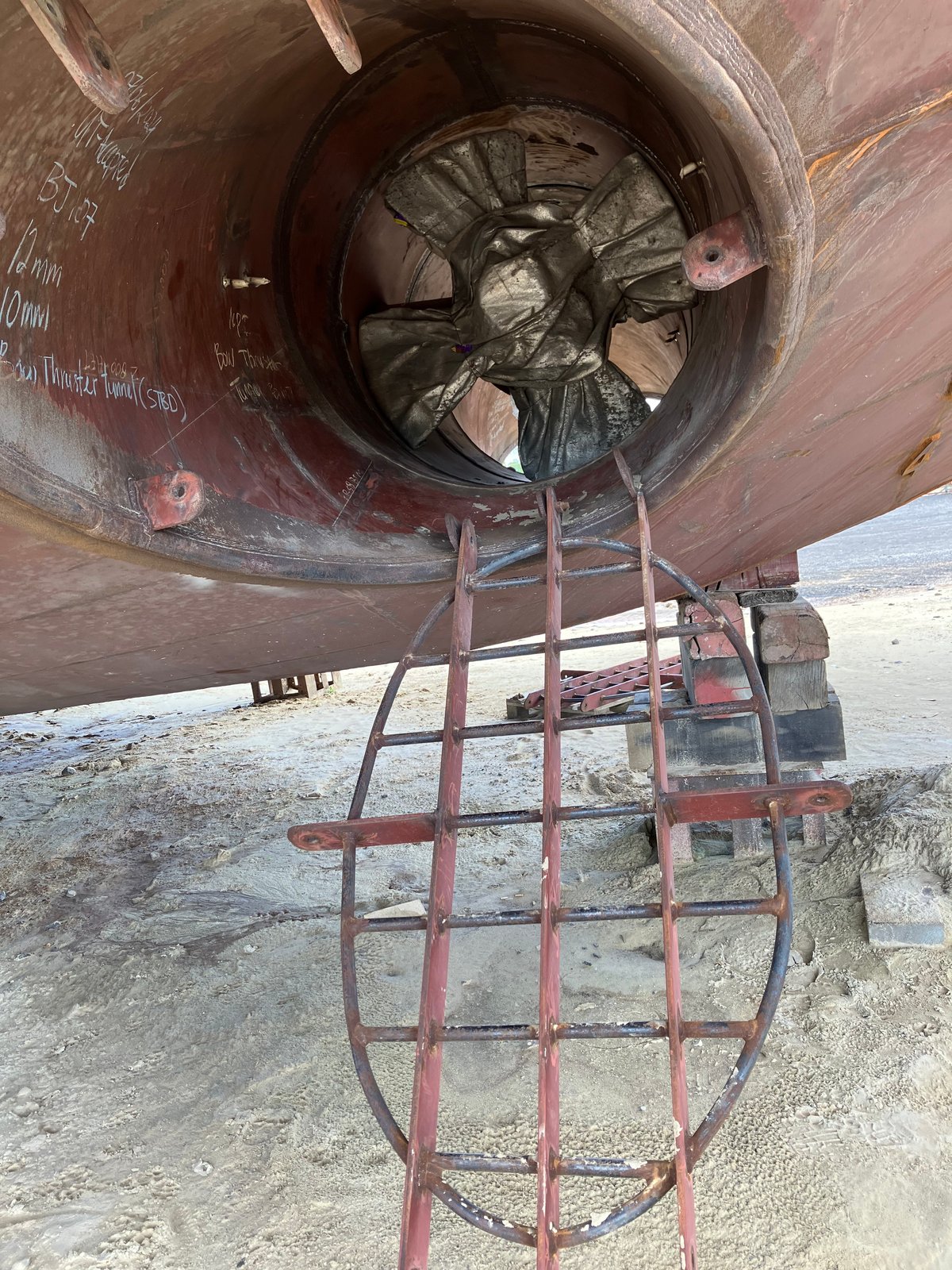

Bow thruster - 1 x Karmone TFA-50DHN 5T, thrust fixed pitch type
Thruster Prime Mover – Yanmar 6HYM-WET 500ps c/w Twin Disc gearbox MG 5082 SC (ratio 1.53 : 1)
Auxiliary motors – 2 x Cat C7.1 150ekw@ 1500 rpm
1 x Cummins 6BT5.9-GM83 or equal, 58 kw alternator at 1500 rpm.
Accommodation – 14 (5 x 2 berth & 4 x single)
Tank capacities
Fuel oil – 245m3 (approx)
Long range - 1106 m3 (approx)
Water (fresh) – 183 m3 (approx)
Water (ballast) – 561 m3 (approx)

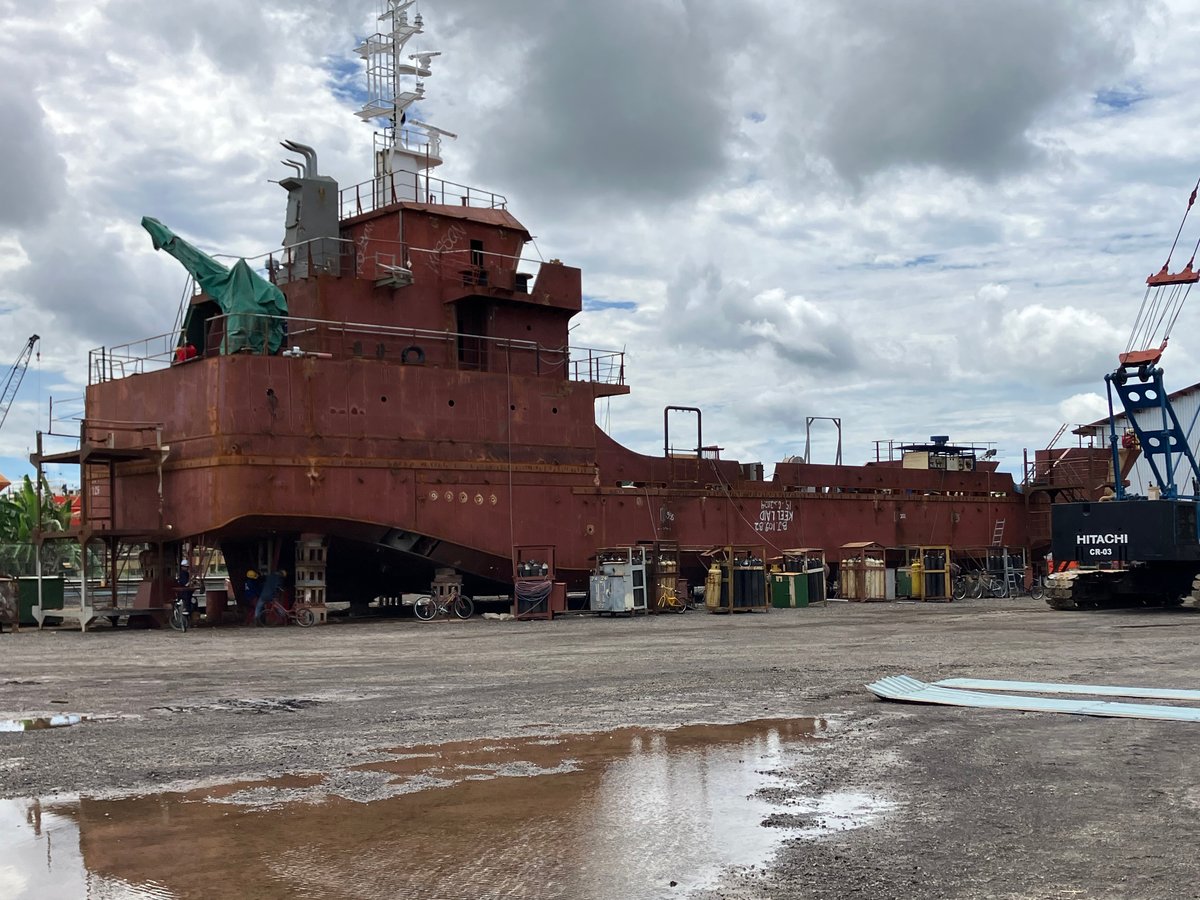

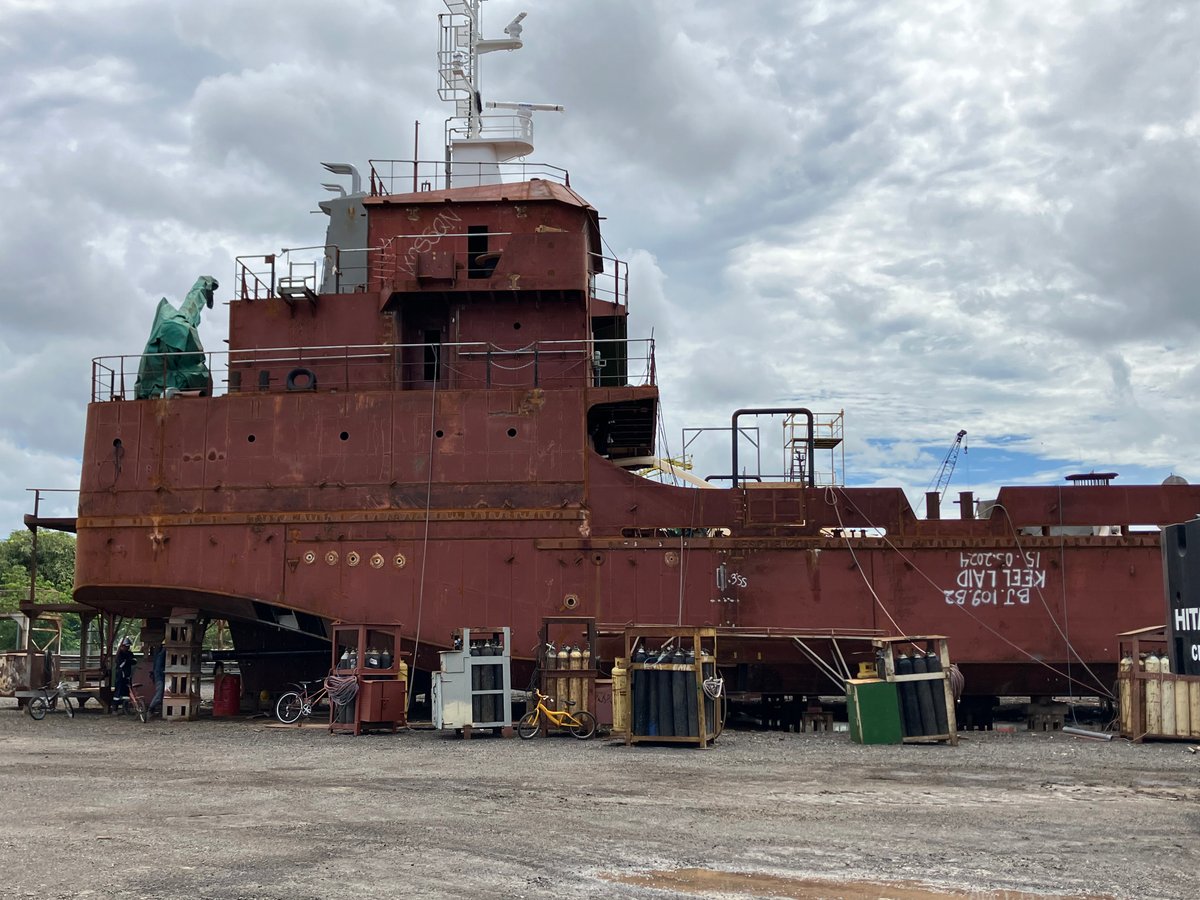

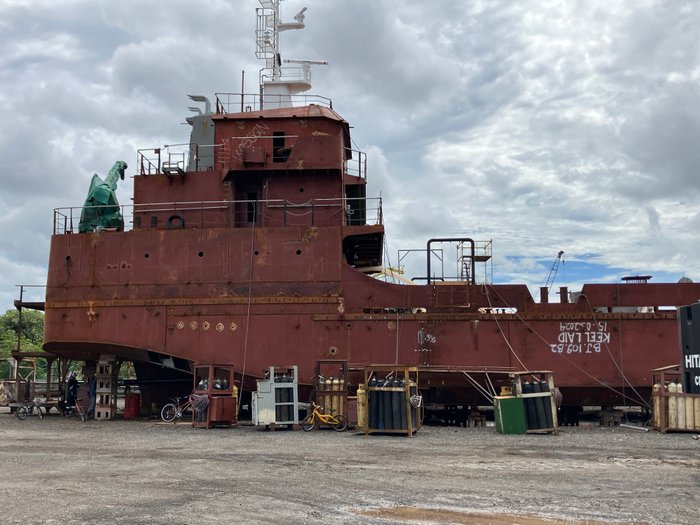

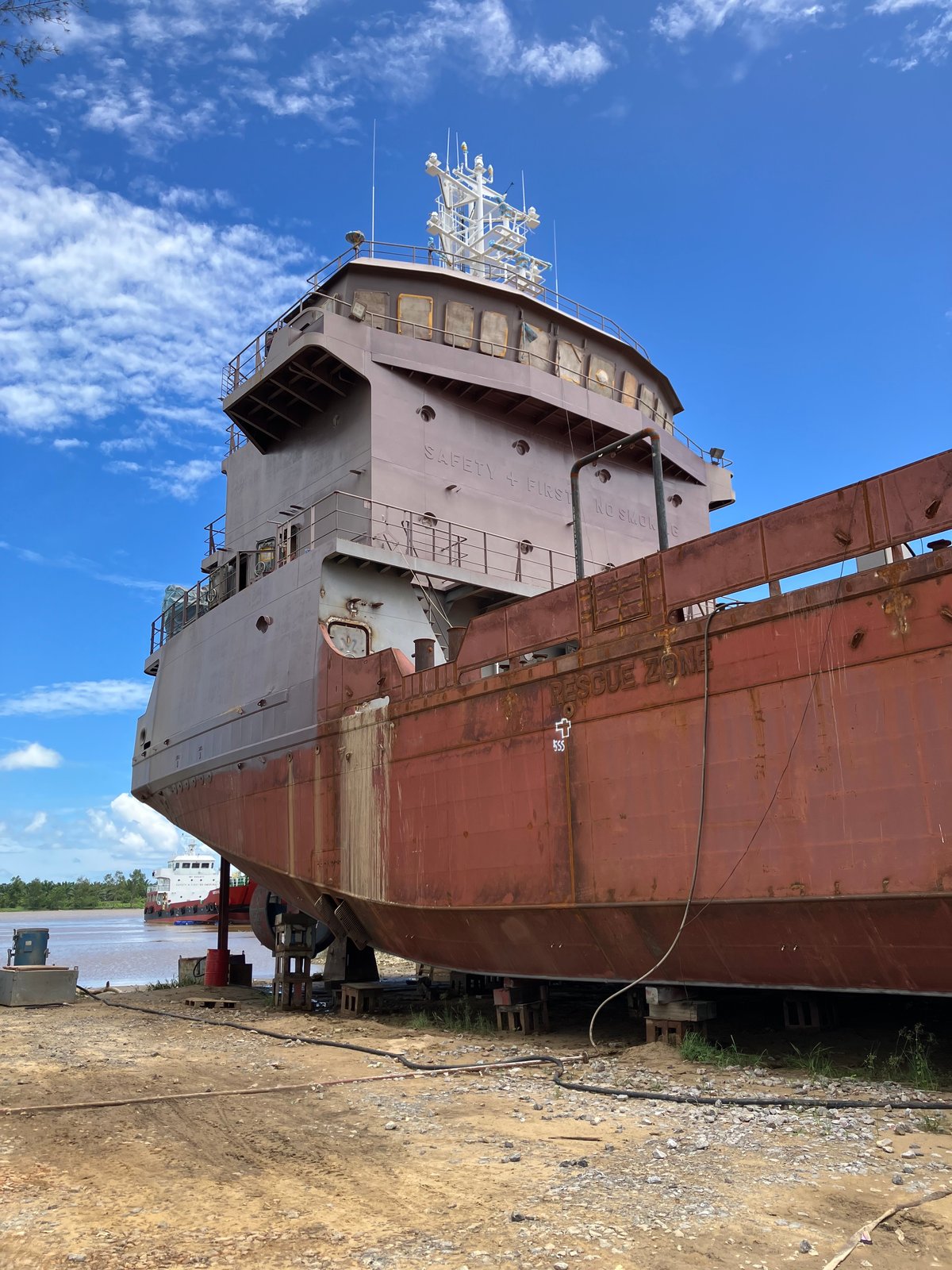

Comments: A new build LCT with a planned launch, sea trials and delivery in December 2024.
A like new build construction is also available with a scheduled delivery in late 2025.
Also under construction is an 80m LCT
Price: USD $7,000,000
